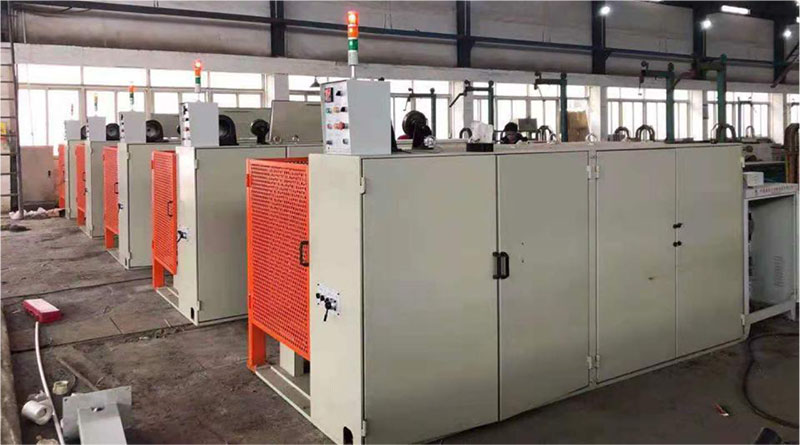

Integrated Water Tank Type Wire Drawing Machine

LT1 3-1 9/300-350型整体式水箱一体机技术参数

加工材料 Raw material		中、高碳钢丝 Middle or high carbon steel	启动时间Start time	s	5-30
进线直径 Input	mm	≤1.6-3.0	驱动电机功率 Main motor	kw	30/37/45
出线直径 Output	mm	≤0.5-1.0	电控方式 Electrical Control		PLC控制、多功能自动保护 Multi-function and automatic protection
进线抗拉强度 Input tensile strength	MPa	≤1250	塔轮表面Capstan		软面/喷涂Coated type
出线抗拉强度 Output tensile strength	MPa	2250	噪音Noise	db	<82
道次 Max.Dies	draft	13-19	润滑冷却方式 Cooling type		浸入式循环冷却 Immersion circulating cooling
平均压缩率 Average compression ratio	%	14.17	润滑箱容量 Water tank volume	L	420
拉拔速度 Speed	m/s	10(变频无级调速) (adjustable)	外形尺寸Dimension	mm	3180×1510×1430
塔轮结构 Capstan structure		分体式Split type	重量Weight	kg	4300
放线工字轮 Pay-off		用户自定Customized

The water tank integrated machine is one of the LT series water tank drawing machines independently developed and improved by our company. (The main motor, water tank, and take-up are on the same base; four-axis fully active and passive capstan self-adjusting design , The drawing capstan is a split type, the final die adopts a universal design, and the double meter design can meet the requirements of high-precision metering. The wind cooling of the transmission box can effectively reduce the working temperature; in addition to the special improvement of the new anti-leakage wheel is used to prevent the lubricating fluid from leaking out of the machine body along the capstan shaft;Suitable for medium and high carbon metal wire, suitable for drawing special purpose steel wire such as rope steel wire, spring steel wire and stainless steel wire. The whole machine is hoisted; the synchronous belt drive mode and control mode are PLC frequency conversion control and soft start control. It has obvious advantages of energy saving, space saving, low invest and low labor intensity of workers. It greatly saves production costs for users and improves the competitiveness of products in the market, which is very popular in the market.
